Model Context Protocol (MCP) — Ticket Server

Overview

Loonflow exposes a Model Context Protocol server that lets compatible clients (for example AI-assisted editors) query and handle tickets through authenticated tools. The server name advertised to clients is loonflow-ticket. Tools call the same permission-aware ticket services as the web UI.

Authentication

Calls must be authenticated with an access token. Supported token types include:

Personal access token (recommended for MCP clients): values start with lfpat.
JWT issued by Loonflow (same as API usage)

You can pass the token in the MCP HTTP client as a header (see configuration below), pass it per tool where supported, or configure a server-side environment variable for non-interactive setups.

Create a personal access token

Open Personal Information in the product UI, then open Personal Access Token. Create a new token and store it securely. Replace xxx in the configuration example with that token.

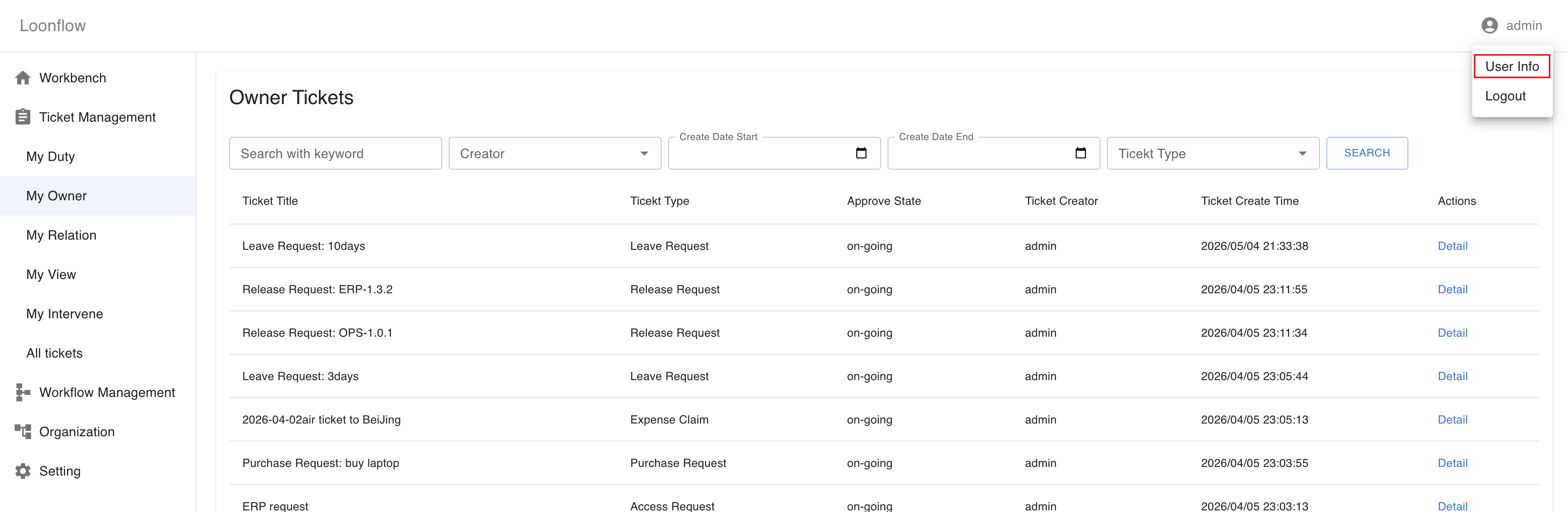

Personal Information and Personal Access Token in Loonflow — Navigate to Personal Information → Personal Access Token.

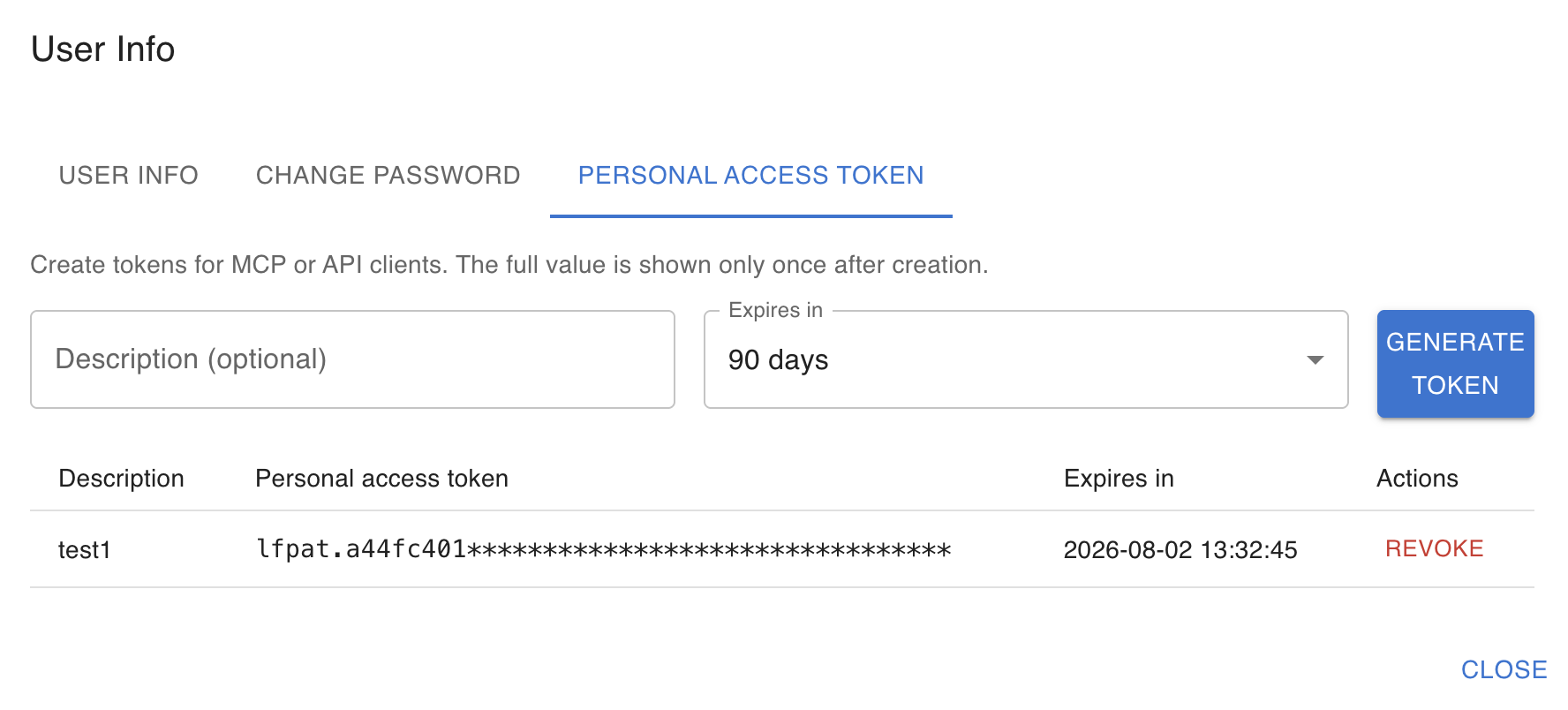

Create personal access token dialog or form — Create or manage personal access tokens.

Client configuration (example)

Use the Streamable HTTP endpoint exposed by the MCP process (default path /mcp). Adjust host and port to match your deployment; local development often uses port 8002.

For the Loonflow SaaS service, use https://mcp.loonflow.com/mcp as the MCP server URL.

{
  "mcpServers": {
    "loonflow-ticket": {
      "url": "http://127.0.0.1:8002/mcp",
      "headers": {
        "Authorization": "Bearer xxx"
      }
    }
  }
}

Replace xxx with your personal access token. If the client supports separate auth configuration, you may alternatively send X-Loonflow-Access-Token with the raw token value.

Supported tools

The server currently registers the following tools.

`ticket_list`

Returns a paginated ticket list for the authenticated user, including total count and pagination metadata.

Main behavior:

category selects which list to query: duty (my todo), owner (created by me), relation (related to me), view (I can view), worked (tickets I processed), intervene (I can intervene), all (all tickets; admin only).
Optional filters include free-text search_value, create_start / create_end, workflow_ids, node_ids, ticket_ids, act_state, creator_id, parent_ticket_id, reverse, per_page, and page.
If neither create_start nor create_end is set, a default time window is applied (see server implementation).

`ticket_detail`

Loads ticket detail for a given ticket_id: dynamic form schema (component_info_list), workflow metadata, field_permissions, derived required_fields / optional_fields / readonly_fields, and available actions (plus admin_actions when applicable), including base node identifiers used by some actions.

`ticket_prepare_handle`

Prepares the same context as ticket detail (form schema, permissions, and available actions). Use it when you want a dedicated “prepare to handle” step before submitting an action.

`ticket_handle`

Executes a workflow action on a ticket after permission and field validation.
